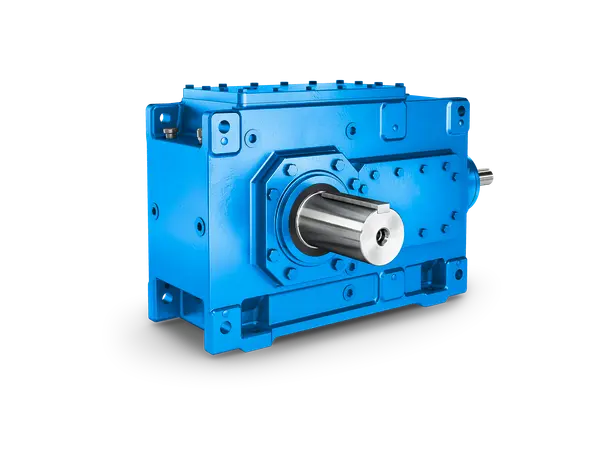

Flender FZG

The Flender FZG series is considered as the most complete industrial gear series on the market.
Size 3-28 (28 sizes)
Available in parallell and right angled execution
1-4 stages, ratio 1,25-450:1
Solid shaft, hollow shaft w. keyway, shrinc disc or splines Ø60-460 mm
Output torque up to 1.400.000 Nm
Input configuration with solid shaft or IEC adapter.
Housing for shaft, foot or flange mounting.
Options: ATEX, certificates, viton sealing, labyrith sealing, backstop, frame & swingbase, forced cooling, cooling coil, heater etc.
Also available in application/bransch specific executions ex. mixer, paper-, steel-, material handling and cement industry.

Feel free to contact Jens S for additional information.
