ATEK L/V

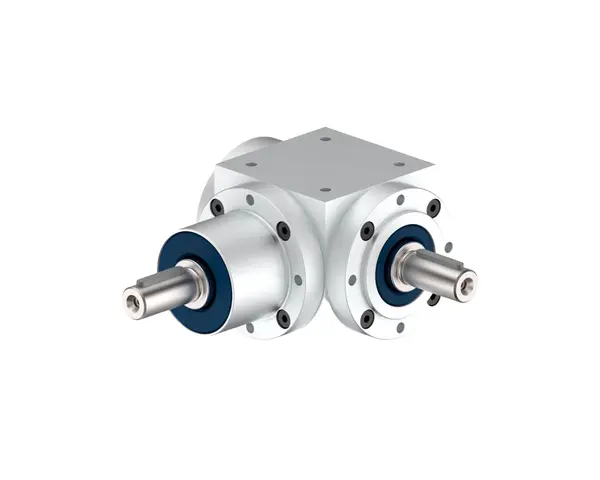

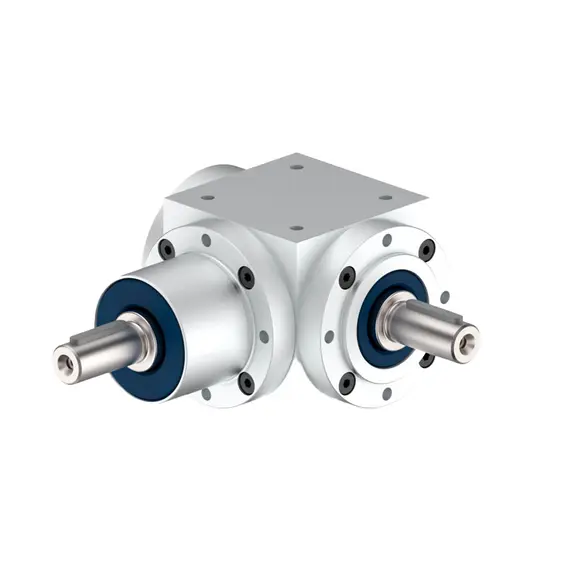

Bevel gearboxes type L
Ratio 1:1 – 2:1 – 3:1 – 4:1
Max. output torque 16 Nm
One or two output shafts
Output shaft diameter 6 – 10 mm

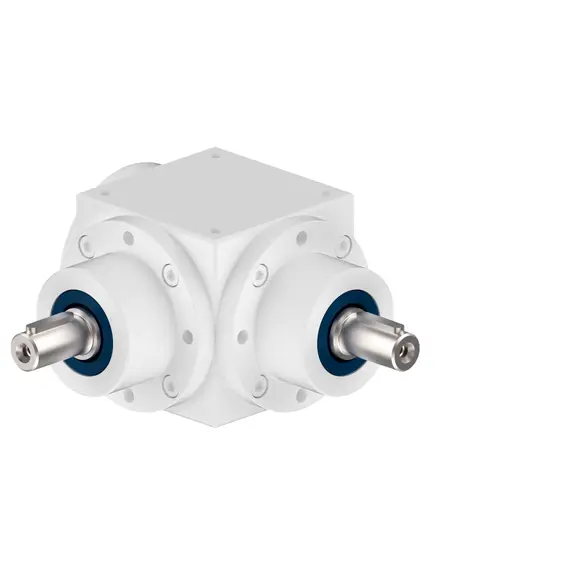

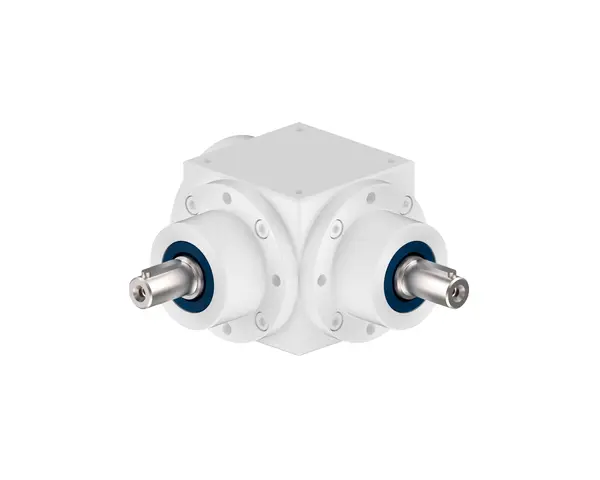

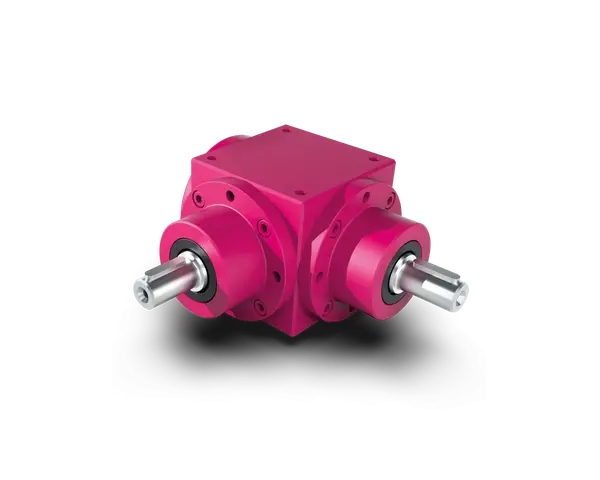

Bevel gearboxes type V
Ratio 1,5 – 1:1 -2:1 – 3:1 – 4:1 – 5:1 – 6:1
Max. output torque 5.400 Nm
One or two output shafts
Output shaft diameters 12 – 60 mm
Also available in version with motor flange (type VL)
Large verity of accessories: hollow shaft, splined hollow shaft, hollow shaft with shrink disc etc
