ATEK S/SL/SLM

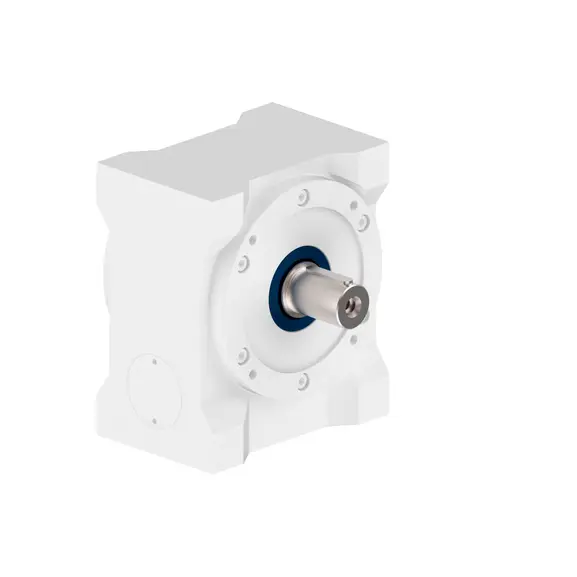

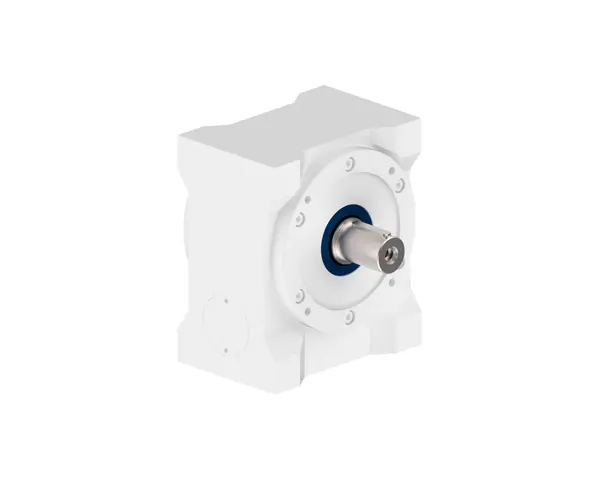

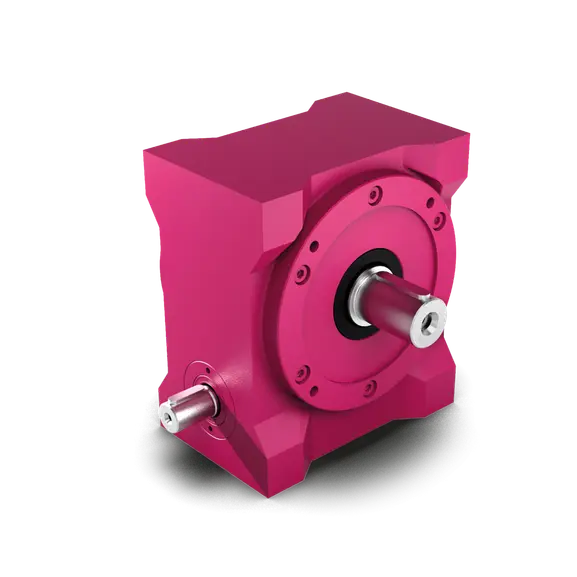

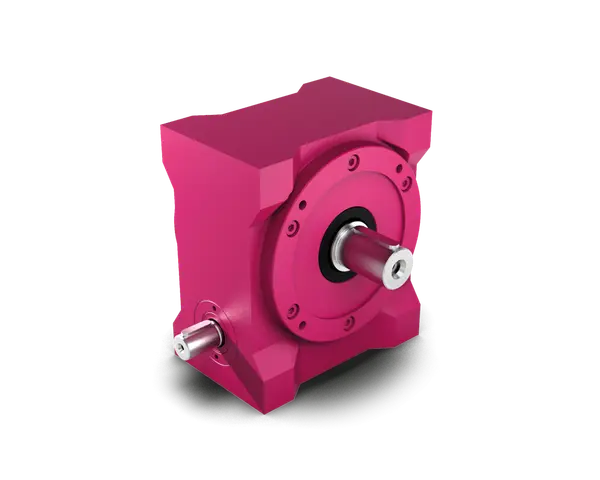

Worm gearbox type S
Gear ratios: i = 01:1 to 83:1
Maximum output torque: 1.765 Nm
5 sizes, centre-to-centre distance of 040 to 100 mm
Low-backlash construction < 6 angular minutes possible
Housing made of grey cast iron

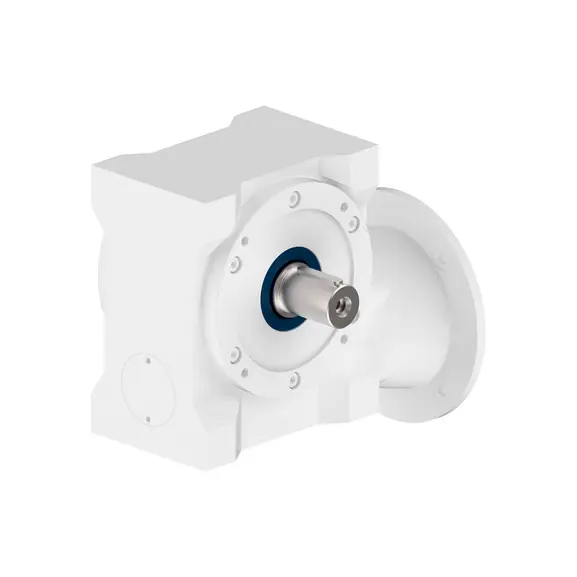

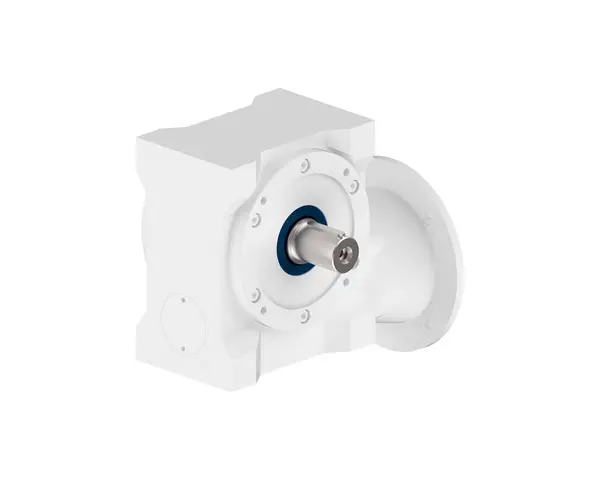

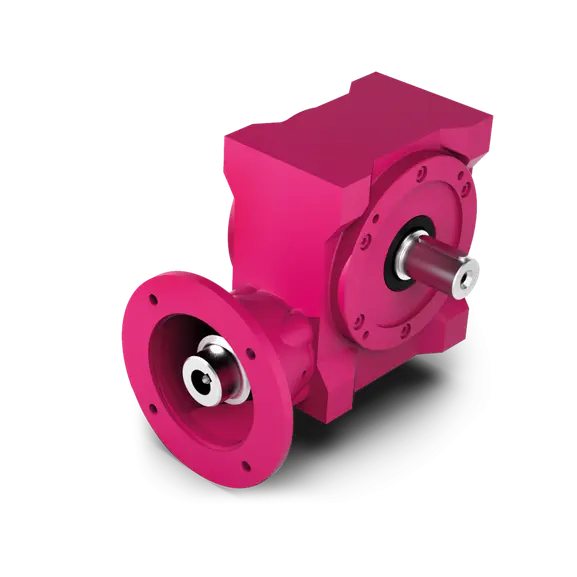

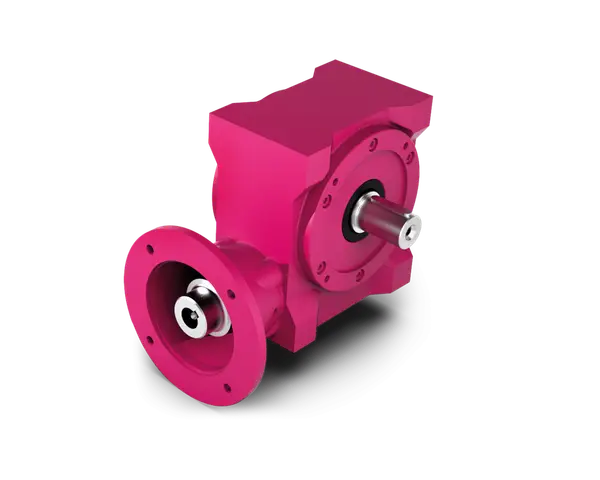

Worm gearbox with flange for IEC standard motor type SL
Gear ratios: i = 10:1 to 83:1
Maximum output torque: 1.765 Nm
5 sizes, centre-to-centre distance of 040 to 100 mm
Low-backlash construction < 6 angular minutes possible
Suitable for fitting IEC standard motors
Drive side with hollow-bored shaft and flange
Housing made of grey cast iron

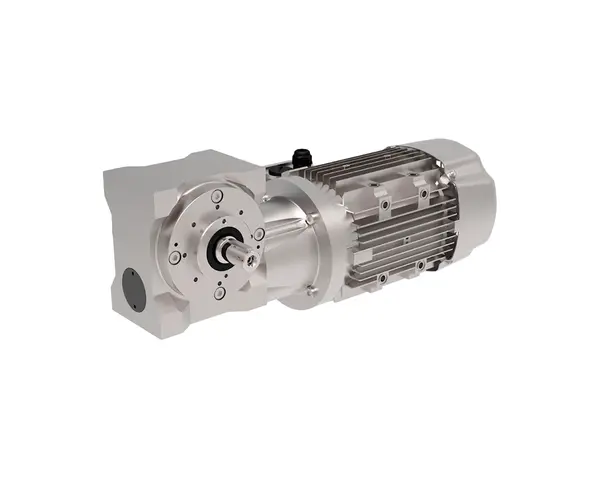

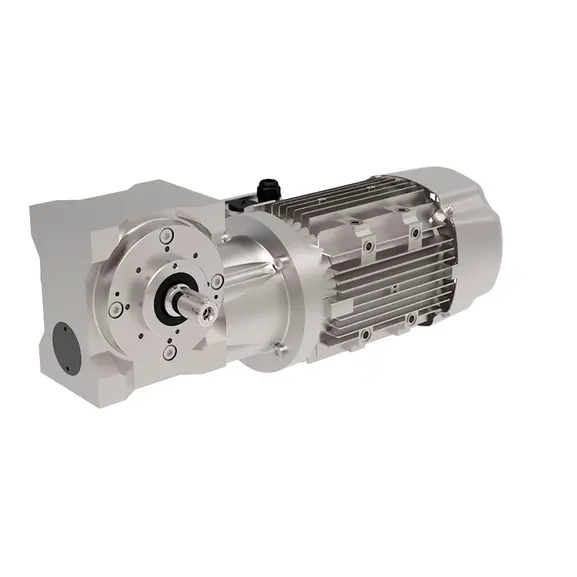

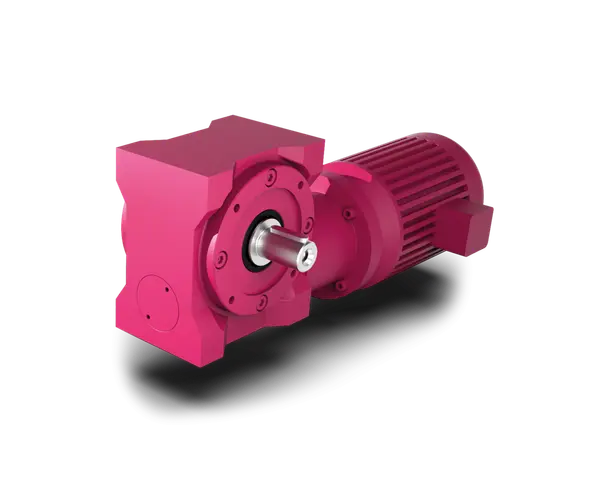

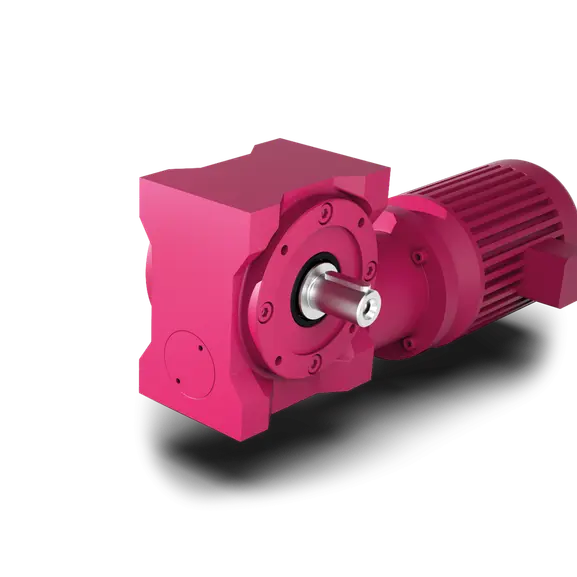

Worm gearbox type SL with motor = type SLM
Nominal gear ratios: i = 10:1 to 83:1
Maximum output torque: 1.765 Nm
5 sizes, centre-to-centre distance of 040 to 100 mm
Low-backlash construction < 6 angular minutes possible
With mounted IEC standard motor
Positive coupling between motor and gearbox
Housing made of grey cast iron
